Vision Quest™

  • Our best-selling 8 circuit Vision Quest™ design was created in 1997 to meet the needs of modern labyrinth walkers in a smaller space than required for our Chartres Replica design. Our design has been produced and installed in every imaginable form, from portables on poly canvas to precision cut tile floors. Our Vision Quest paver labyrinth kit has a large center opening and shares the same delicate 4.5 to 1 path to line ratio as our Chartres Replica.  Create a standard plaza diameter of 30'-2.25". Packaged into an easy to install kit in 10 color combinations, your paver brick labyrinth plaza will be fully ADA handicap rated.
  •  Plaza Diameter/Area  30'-2.25" / 716 sq.ft.
     Labyrinth Diameter  29'-6"
     Number of Circuits  8
     Circuit Width  15-1/8"
     Path Width  12-3/8"
     Line Width  2-3/4"
     Center Diameter  9'-2"
     Path Length  464 feet
     Round Trip Length  927 feet = .18 mile
     Capacity 8 - 12 Walkers
     Material  Concrete Paver Bricks in 2 Colors
     Thickness  2-3/8" = 6 cm
     Composition  High Strength 8000 PSI Concrete
     Packaging & Weight  11 Pallets - 26,310 pounds

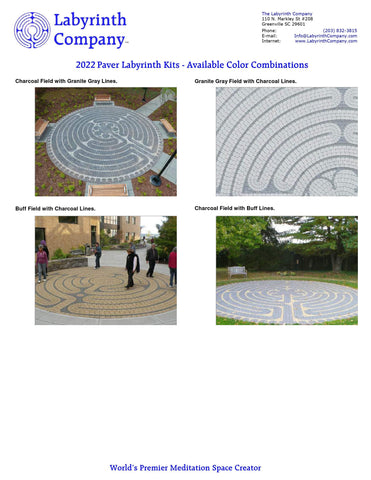

  • Available colors are Charcoal, Rose Red, Buff and Granite Gray. Choose Charcoal as either the line or field/path color for best contrast. These integral color paving stones have color throughout each block, not just on the surface.  Additional matching color pavers may be ordered to complete your hardscape installation with pathways, bench pads or an apron around your labyrinth. Call or email us today to receive a set of sample pavers.

  • Delivery is by full truckload to your facility or job site, with freight costs determined by destination. Contact us today for a freight quote to your location.
    Build Productivity: similar to a typical 30' round paver patio plus 4 crew hours to insert the pre-cut details. Including base preparation this is a 3 day project for an experienced paver installer. We recommend the use of polymeric joint sand for best results.
    What's Included? all of the pavers for the design, including pre-cut and specially molded turns, packed in logical layers on pallets, one-time use layout templates, detailed step-by-step instructions, and telephone and email support during your build.
    Video Installation Example We installed a 23' round kit on the DIY Network show Rock Solid.
    Copyright: Vision Quest™ labyrinth design ©1997, 2016 by The Labyrinth Company. All Rights Reserved.
