Chartres Replica™

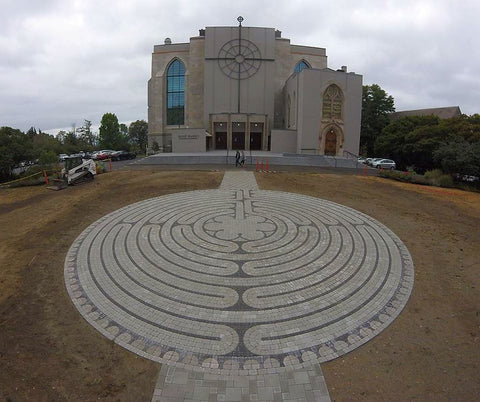

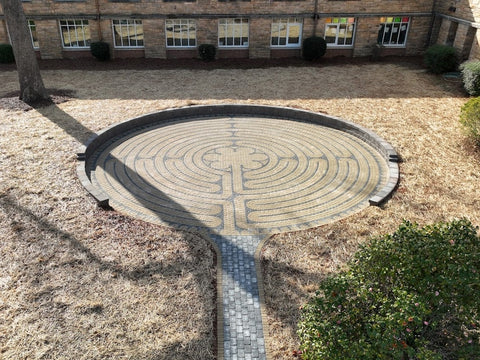

  • Our unique Chartres Replica™ pre-cut and packaged paver kit creates a precisely scaled 91% model of the original 821 year old labyrinth design from the nave floor of Chartres Cathedral in France. This is the most famous and intricate labyrinth design of all time, crafted by The Labyrinth Company into an easy to install kit. The 11 circuit design features our exclusive Labyrinth Turns molded shapes to replicate the delicate 4.5 to 1 path to line sacred geometry from Chartres Cathedral. Builds a 39'-0.5" plaza that is fully ADA handicap rated. Packaged into an easy to install kit in 4 color combinations.
  •  Plaza Diameter/Area  39'-0.5" / 1197 sq.ft.
     Labyrinth Diameter  38'-4.25"
     Number of Circuits  11
     Circuit Width  15-1/8"
     Path Width  12-3/8"
     Line Width  2-3/4"
     Center Diameter  9'-2"
     Path Length  820 feet
     Round Trip Length  1639 feet = .31 mile
     Capacity  16 - 20 Walkers
     Material  Concrete Paver Bricks in 2 Colors
     Thickness  2-3/8" = 6 cm
     Composition  High Strength 8000 PSI Concrete
     Packaging & Weight  16 Pallets - 37,900 pounds
  • Available colors are Charcoal, Buff and Granite Gray. Charcoal is required as either the line or field/path color. These integral color paving stones have color throughout each block, not just on the surface.  Additional matching color pavers may be ordered to complete your hardscape installation with pathways, bench pads or an apron around your labyrinth. Call or email us today to receive a set of sample pavers.
  • Delivery is by full truckload to your facility or job site, with freight costs determined by destination. Contact us today for a freight quote to your location.
    Build Productivity: similar to a typical 40' round paver patio plus 6 crew hours to insert the pre-cut details. Including base preparation this is a 3.5 - 4 day project for an experienced paver installation crew (4 workers plus supervisor). We recommend the use of polymeric joint sand for best results.
    What's Included? all of the pavers for the design, including pre-cut and specially molded turns, the central rosette, and perimeter lunations packed in logical layers on pallets, one-time use layout templates, detailed step-by-step instructions, and telephone and email support during your build.
    Video Installation Example We installed a 23' round kit on the DIY Network show Rock Solid.
