Vision Quest à la Chartres™

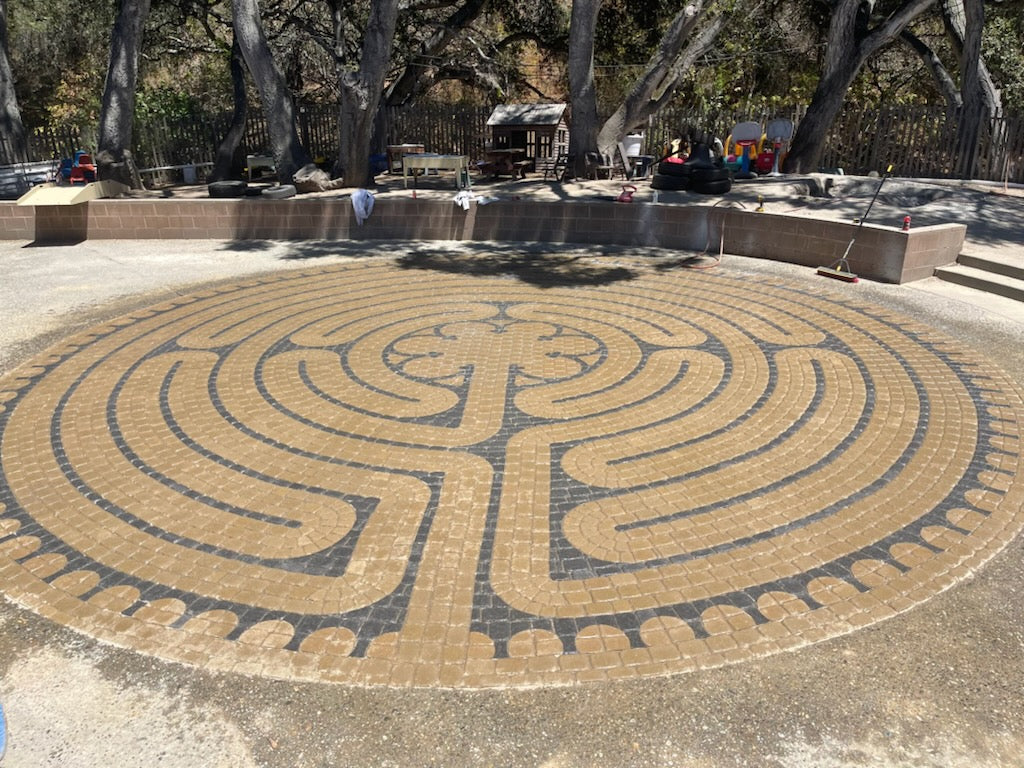

  • Our Vision Quest à la Chartres™ design in pre-cut and packaged paver kit form. Winner of a national masonry pavement design award in 2003. Our kit builds a 29' 7.25" diameter plaza with 28' 11" labyrinth design, and features our best-selling Vision Quest™ design with proportionally correct central rosette and perimeter lunations from our renowned Chartres Replica™ design. Plus our exclusive Labyrinth Turns molded shapes to replicate the delicate 4.5 to 1 path to line sacred geometry from Chartres Cathedral. Packaged into an easy to install kit in 4 color combinations. Your paver brick labyrinth plaza will be fully ADA handicap rated.
  •  Plaza Diameter/Area  29'-7.25" / 688 sq.ft.
     Labyrinth Diameter  28'-11"
     Number of Circuits  8
     Circuit Width  15-1/8"
     Path Width  12-3/8"
     Line Width  2-3/4"
     Center Diameter  7'-4"
     Path Length  434 feet
     Round Trip Length  868 feet = .16 mile
     Capacity  8 - 12 Walkers
     Material  Concrete Paver Bricks in 2 Colors
     Thickness  2-3/8" = 6 cm
     Composition  High Strength 8000 PSI Concrete
     Packaging & Weight  10 Pallets - 22,190 pounds

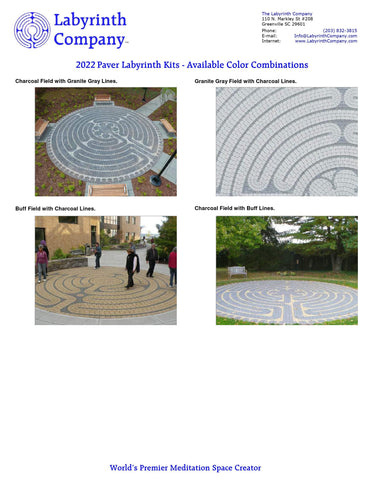

  • Available colors are Charcoal, Buff and Granite Gray. Charcoal is required as either the line or field/path color. These integral color paving stones have color throughout each block, not just on the surface.  Additional matching color pavers may be ordered to complete your hardscape installation with pathways, bench pads or an apron around your labyrinth. Call or email us today to receive a set of sample pavers.
  • Delivery is by full truckload to your facility or job site, with freight costs determined by destination. Contact us today for a freight quote to your location.
    Build Productivity: similar to a typical 30' round paver patio plus 4 - 5 crew hours to insert the pre-cut details. Including base preparation this is a 3 - 3.5 day project for an experienced paver installation crew (4 workers plus supervisor). We recommend the use of polymeric joint sand for best results.
    What's Included? all of the pavers for the design, including pre-cut and specially molded turns, the central rosette, and perimeter lunations packed in logical layers on pallets, one-time use layout templates, detailed step-by-step instructions, and telephone and email support during your build.
    Video Installation Example We installed a 23' round kit on the DIY Network show Rock Solid.
    Copyright: Vision Quest à la Chartres™ labyrinth design ©1997, 2022 by The Labyrinth Company. All Rights Reserved.
