Breamore™

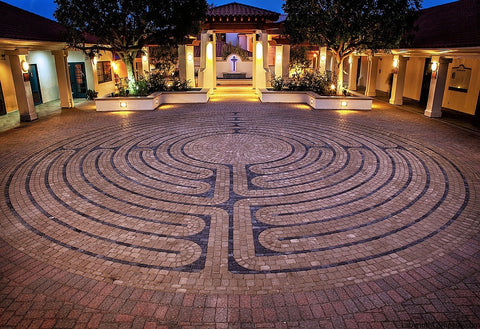

  • The 11 circuit Breamore™ design was the root form of the famous Chartres Cathedral design, absent the rosette center and perimeter lunations. Our adaptation takes its name from a turf grass labyrinth in England at a former abbey. Our Breamore paver labyrinth kit comes in two sizes, distinguished by the size of the center opening, creating plaza diameters of 35'-0.75" and 39'-7.75". They share the same delicate 4.5 to 1 path to line ratio as our Chartres Replica. Packaged into an easy to install kit in 10 color combinations. Your paver brick labyrinth plaza will be fully ADA handicap rated.
  •  Plaza Diameter/Area  39'-7.75" / 1234 sq.ft.  35'-0.75" / 966 sq.ft.
     Labyrinth Diameter  38'-11.5"  33'-4.5"
     Number of Circuits  11  11
     Circuit Width  15-1/8"  15-1/8"
     Path Width  12-3/8"  12-3/8"
     Line Width  2-3/4"  2-3/4"
     Center Diameter  11'-0"  6'-5"
     Path Length  856 feet  757 feet
     Round Trip Length  1712 feet = .32 mile  1514 feet = .29 mile
     Capacity  12 - 18 Walkers  15 - 21 Walkers
     Material  Concrete Paver Bricks in 2 Colors  Concrete Paver Bricks in 2 Colors
     Thickness  2-3/8" = 6 cm  2-3/8" = 6 cm
     Composition  High Strength 8000 PSI Concrete  High Strength 8000 PSI Concrete
     Packaging & Weight  17 Pallets - 41,500 pounds  14 Pallets - 33,600 pounds
  • Available colors are Charcoal, Rose Red, Buff and Granite Gray. Choose Charcoal as either the line or field/path color for best contrast. These integral color paving stones have color throughout each block, not just on the surface.  Additional matching color pavers may be ordered to complete your hardscape installation with pathways, bench pads or an apron around your labyrinth. Call or email us today to receive a set of sample pavers.

  • Delivery is by full truckload to your facility or job site, with freight costs determined by destination. Contact us today for a freight quote to your location.
    Build Productivity: similar to a typical 35' - 40' round paver patio plus 4 - 5 crew hours to insert the pre-cut details. Including base preparation this is a 3 - 3.5 day project for an experienced paver installer. We recommend the use of polymeric joint sand for best results.
    What's Included? all of the pavers for the design, including pre-cut and specially molded turns, packed in logical layers on pallets, one-time use layout templates, detailed step-by-step instructions, and telephone and email support during your build.
    Video Installation Example We installed a 23' round kit on the DIY Network show Rock Solid.
    Copyright: Breamore™ labyrinth design ©1997, 2016 by The Labyrinth Company. All Rights Reserved.
